Product Description

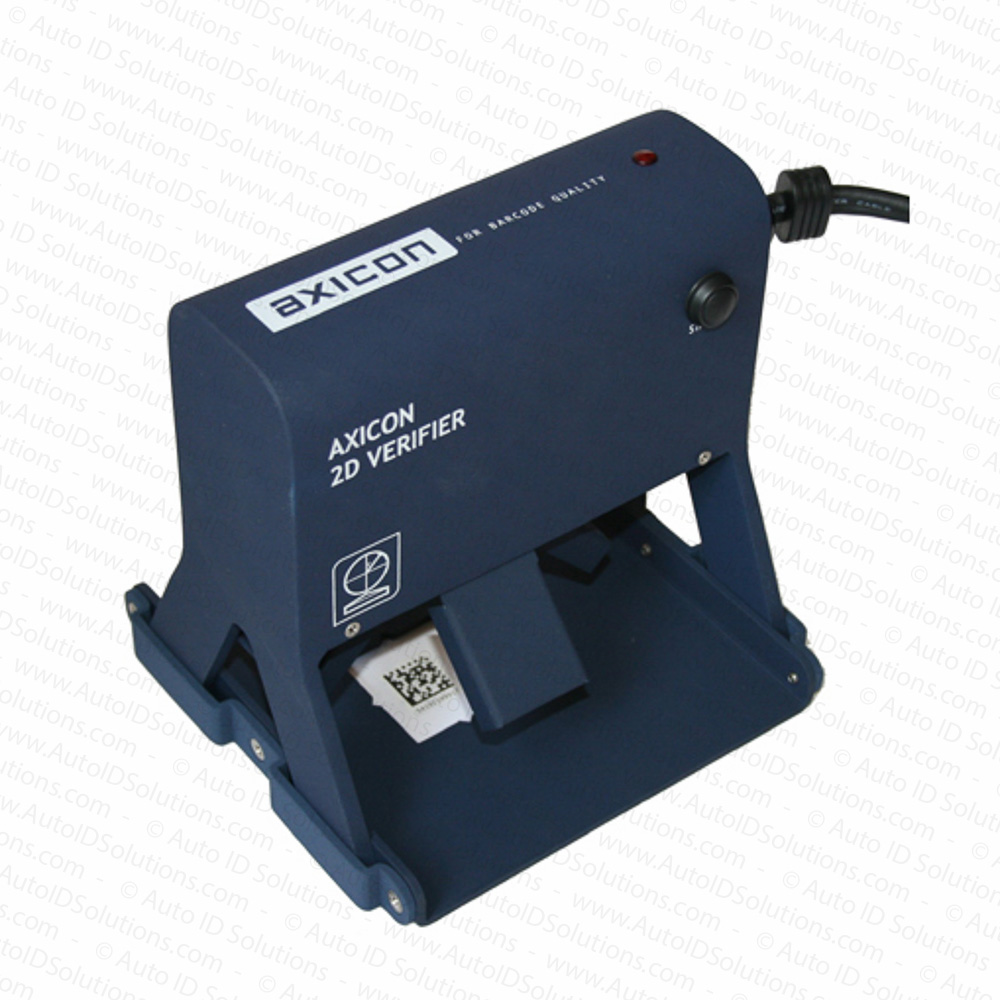

The Axicon 12500 series is designed for medium DataMatrix bar codes (using alternative software – QR code, Aztec code, PDF417, Micro PDF, GS1 DataMatrix, GS1 Databar, Pharmacode). The easy-to-use design reduces user error and eliminates product damage, while providing the highest level of accuracy achievable for verification.
Features:
-
- For bar codes up to 1.45” x 1.0” (37mm x 25mm)
- Automatic variable aperture (minimum of 5 mil)
- Push button bar code capture
- Auto-discrimination between all popular 2D symbologies
- Accurate display of the Module size or “X” dimension/Magnification
- AI Data Content Checker
- USB connection
- Free lifetime software upgrades
- Follows the ISO15416 and ANSI X3.182 Bar Code Inspection Method
- Conforms to ISO15426-1 Bar Code Verifier Specification
- Traceable to NIST (National Institute of Standards and Technology)
Simply install the software on your computer, plug in the verifier and be confident that your barcodes are being checked to the highest standards. Exclusive software upgrade features including .csv file saving and the additional ScanDB software (spreadsheet reporting function), Application Identifier (AI) Data Content Checker and Product Look-Up, can either be supplied as part of the package or as a field upgrade to the standard software.
NOTE: The Axicon 12500 meets the International Organization for Standardization’s “Bar Code Print Quality Test Specification” (ISO 15416), the American National Standard Institute’s “Guideline for Bar Code Quality” (ANSI X3.182-1990), the Uniform Code Council (UCC), and the CEN specifications regarding verification methods and methodology. It also meets International Organization for Standardization’s “Bar Code Verifier Conformance Specification” (ISO 15426-1). This equipment and its documentation were developed to fit into your company’s existing ISO 9000/9001/9002 policies and procedures.
