LVS Integra 9505 GS1 Compliant Bar Code Verifier with Standard Camera

** Microscan LVS has discontinued this product **
The suggested product replacement is the Microscan LVS 9510 – Link

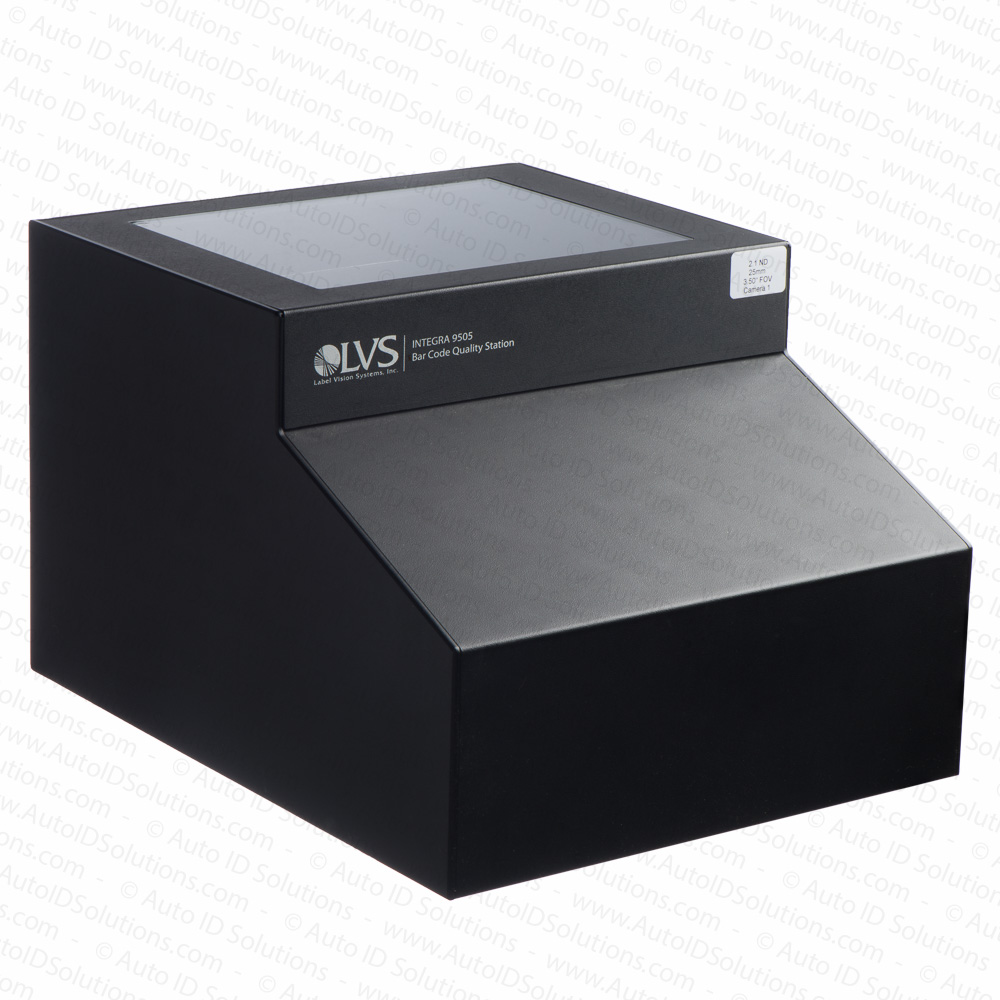

The LVS 9505 is a desktop barcode verifier that validates the print quality of 1D and 2D barcode symbologies to ISO/IEC, ANSI, GS1, and UDI standards.

Note: This model has been replaced by the Microscan LVS 9510.

SKU: LVS-9505-25-SD.

Product Description

The Microscan LVS 9505 barcode verifier provides bar code verification to ISO/IEC and GS1 standards of common linear and 2D bar code symbologies including; Datamatrix ECC-200 (GS1 Data Matrix, EIB CMDM, French CIP, NTIN, and PPN), QR Code (non-DPM), Aztec, MaxiCode, Micro QR Code, MicroPDF417, PDF417, Codabar, Code 128, Code 39, Code 93, DataBar (all), UPC/EAN (all), GS1-128, Interleaved 2 of 5 (ITF), Japan Post, MSI Plessey, Pharmacode (Italian and Laetus), USPS Intelligent Mail Barcode. Printed labels are inspected to a variety of global application standards, providing comprehensive quality analysis and reporting features.

Additional information

Product Type:	Bar Code Verifier
Brand:	Microscan LVS/Omron
Price:	$4500 or more
Status:	Obsolete
Code Width:	Less than 1.0 in width, Less than 1.5 in width, Less than 2.0 in width, Less than 2.5 in width, Less than 3.0 in width, Less than 4.0 in width, Less than 4.5 in width, Less than 5.0 in width
Code Height:	Greater than 2.5 in, Less than 0.125 in tall, Less than 0.25 in tall, Less than 0.5 in tall, Less than 1.0 in tall, Less than 1.5 in tall, Less than 2.0 in tall, Less than 2.5 in tall
Capt. Method:	Contact
Calib. Plaque:	Yes
Re-certification:	Every 12 Months
Capture Area:	Area Scan
ISO/ANSI:	Full, Traditional
Report Types:	Windows Printer
Wavelength:	660nm (Red)
Bar Code Type:	2D Matrix Bar Codes, Composite Bar Codes, Linear 1D Bar Codes, Linear and 2D Matrix Codes
Scanner Type:	PC
Operating System:	Windows 7, Windows 8, Windows XP
Aperture Sizes:	3 mils, 5 mils, 6 mils, 10 mils, 20 mils, Variable
Industry App:	AIAG, ANSI, CEN, GS1, HIBCC, ISO/IEC, MIL-STD-130M
Model:	Integra 9505
Symbology:	Codabar, Code 128, Code 39, Composite Code CC-A, Composite Code CC-B, Composite Code CC-C, DataBar expanded, DataBar limited, DataBar stacked, DataBar-14, Datamatrix, Datamatrix(ECC200), EAN/JAN-13, EAN/JAN-8, GS1-128, Interleaved 2 of 5 (ITF), ITF-14, MaxiCode, Micro QR Code, MicroPDF417, PDF417, Pharmacode – Laetus, Pharmacode – Italian, QR Code, UPC-A, UPC-E
